Product Description

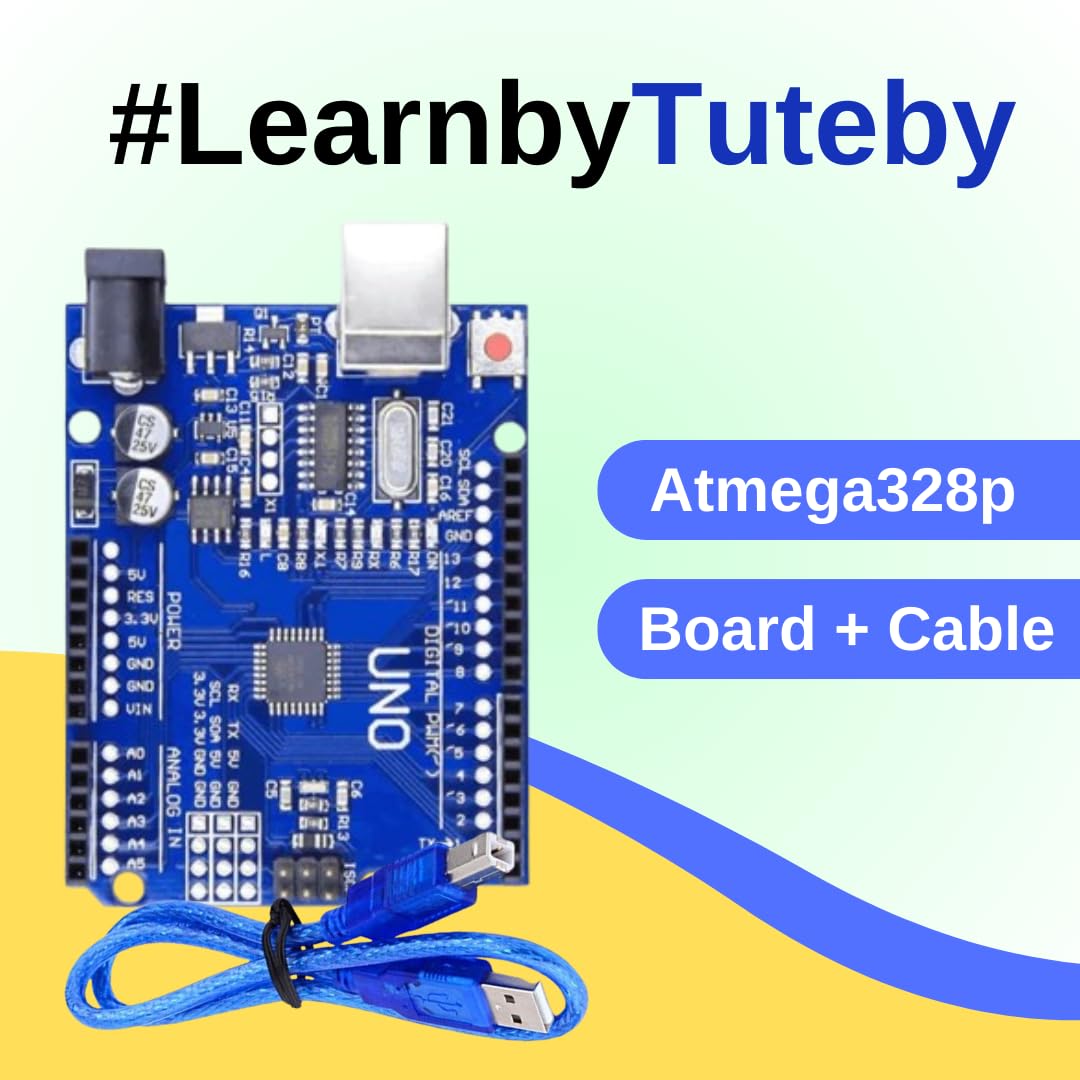

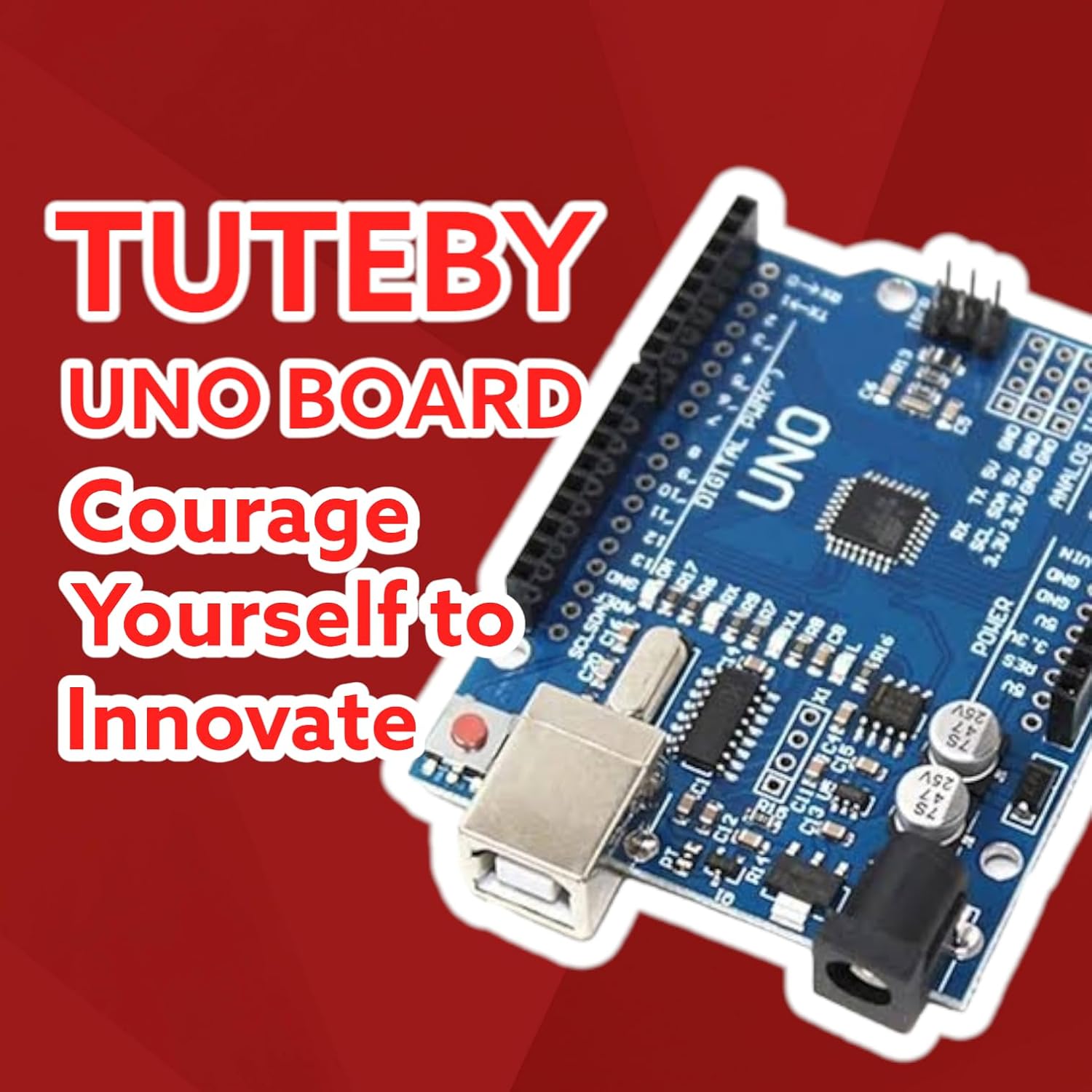

Tuteby UNO Board - A best Development board for young Enthusiastic.

The UNO R3 board is ideal for getting started with electronics and coding.

This adaptable microcontroller features the popular ATmega328P and ATMega 16U2 processors, offering a fantastic introduction to the Arduino IDE.

2 x 8-bit timer/counter with a special period register and comparison channels, 1 x 16-bit timer/counter with a dedicated period register, input detection and comparison channels, 1 x USART with fractional baud rate generator and start-of-frame detection, 1 x controller/peripheral device serial peripheral. al Interface al Interface al Interface al 1 x dual-mode controller/peripheral I2C1x analogue comparator (AC) with scalable reference input. Watchdog timer with separate on-chip oscillator. Six PWM channels. Pause and wake up when changing the pin

Microcontroller ATmega328P microcontroller

Input voltage: 7-12 V

Clock Speed 16 MHz

Component listing 1 x UNO R3 development board, 1 x USB cable

flash 32K

SRAM, EEPROM 2KB SRAM 1KB EEPROM
